How to Choose the Right Temperature Control Valve?

Choosing the right temperature control valve is not simply a matter of matching pipe size. The valve must respond accurately, tolerate the process fluid, and remain stable under changing operating conditions. A small selection error can cause temperature swings, product waste, noisy operation, or premature maintenance. The consequences appear slowly.

This guide examines the practical decisions behind reliable valve selection. It considers temperature range, pressure drop, flow capacity, actuator type, body materials, and control signal compatibility. It also explains why valve authority matters when a system operates near minimum or maximum flow. Manufacturer data should support every decision, but data sheets rarely tell the whole story. Installation conditions, sensor location, water quality, and maintenance access can change actual performance.

A temperature control valve should fit the entire control loop, not just the pipeline. That means checking the controller, sensor, pump, heat exchanger, and fail-safe requirements together. In field applications, an apparently oversized valve may hunt, while an undersized valve may never reach the target temperature. Neither result is acceptable. A neat calculation can still miss an inconvenient detail.

The following outline offers a disciplined way to compare valve designs, verify technical claims, and avoid common purchasing mistakes. It encourages engineers and operators to question assumptions before approval. No single valve suits every process. Careful selection does.

Table of Contents [Hide]

1 Understanding Temperature Control Valve Functions and Applications

2 Identifying Process Requirements and Operating Conditions

3 Comparing Valve Types, Materials, and Control Methods

4 Sizing the Valve for Accurate and Stable Temperature Regulation

5 Evaluating Installation, Maintenance, Safety, and Total Cost

Understanding Temperature Control Valve Functions and Applications

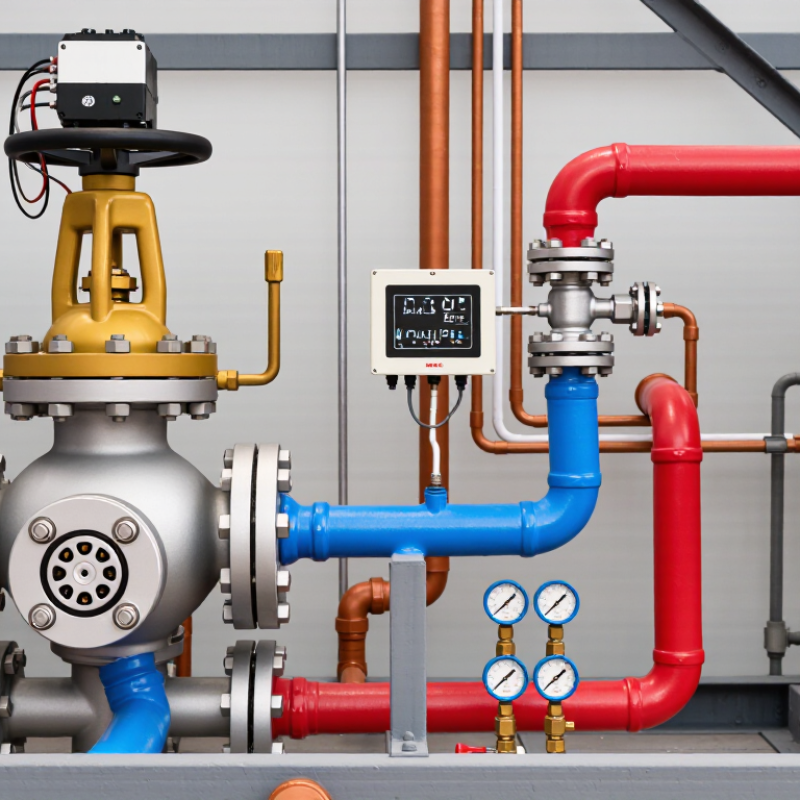

How to Choose the Right Temperature Control Valve?

A temperature control valve regulates fluid flow when process temperature changes. A sensor detects deviation, while the actuator moves the valve toward a safer setpoint. This interaction supports stable heating, cooling, sterilization, and heat-exchanger operation. It also limits thermal shock, product waste, and uncomfortable temperature swings.

Start with the process, not the valve catalog. Identify the medium, operating temperature, pressure, flow range, and required response speed. Steam service may require a globe-style valve with accurate throttling. Cooling-water systems may favor a rotary valve with lower pressure loss. Check the calculated Cv against normal and peak flow. Oversizing often creates hunting, noisy operation, and poor low-load control. It looks safe on paper.

The International Energy Agency reported that industry used about 37% of global final energy in 2022. Small control improvements can therefore carry meaningful consequences. The U.S. Department of Energy’s steam-system guidance notes that assessments may reveal energy savings of roughly 10–15%. Proper valve sizing supports those gains, but installation details matter. Place the sensor where it represents the actual process temperature, not merely the pipe wall. Confirm actuator fail position, calibration intervals, and maintenance access. In field reviews, engineers sometimes trust clean commissioning data too much. Fouling, valve stiction, and seasonal loads can change performance. A practical choice leaves room for those imperfect conditions.

Identifying Process Requirements and Operating Conditions

Selecting a temperature control valve begins with the process, not the valve catalogue. Define the medium, target temperature, flow range, pressure limits, and acceptable variation. Record normal and extreme conditions. Measure the extremes. A heating loop may face cold starts, sudden demand changes, or unstable return temperatures.

IEA’s Energy Efficiency 2023 report states that industry consumes about 37% of global final energy. Small control errors can therefore create substantial waste. For steam systems, U.S. Department of Energy guidance identifies energy-saving opportunities commonly ranging from 10% to 20% through system improvements. These figures vary by site, but they justify careful valve sizing. Calculate required flow and pressure drop at minimum, normal, and maximum loads. Then check rangeability, actuator response, fail position, and control signal compatibility.

Material selection must follow the actual fluid and operating environment. Water quality, corrosion, suspended solids, ambient temperature, and cycling frequency all affect service life. IEC 60534 provides recognized methods for control-valve sizing and testing, but standards cannot replace field data. In practical reviews, engineers sometimes size valves only for peak flow. That can produce poor control during normal operation. A valve operating nearly closed may hunt, while an oversized valve may react too sharply. The first calculation is rarely perfect. Recheck it against commissioning measurements, seasonal loads, and maintenance access. A spreadsheet can still mislead.

How to Choose the Right Temperature Control Valve?

Typical process temperature bands help identify the required valve construction, trim, actuator, and sealing materials. Actual limits depend on pressure, fluid chemistry, thermal cycling, and applicable design standards.

Temperature

Specify normal, minimum, maximum, and start-up temperatures, including thermal cycling.

Pressure and Flow

Check inlet pressure, allowable pressure drop, flow range, shutoff pressure, and cavitation risk.

Process Medium

Confirm fluid phase, viscosity, solids content, corrosion potential, and compatibility with seals and trim.

Safety Function

Select the required fail-open or fail-closed position and verify actuator sizing and response time.

The ranges shown are typical process service bands, not valve ratings. Always verify the final selection against the valve pressure-temperature rating, material compatibility, and relevant standards.

Comparing Valve Types, Materials, and Control Methods

Choosing the right temperature control valve starts with the duty, not the pipe size. Globe valves provide accurate throttling and stable modulation. Ball valves offer low resistance, but they suit isolation better than continuous control. Butterfly valves are practical for large lines, although their control range can be less predictable. The U.S. Department of Energy reports that steam systems consume roughly 30% of industrial energy in the United States. Small control errors can therefore create measurable waste.

Material selection must follow temperature, pressure, fluid chemistry, and maintenance conditions. Brass and bronze work well in moderate water service. Stainless steel handles corrosive fluids and demanding temperatures more reliably. Carbon steel supports higher-pressure systems, but it needs corrosion protection. Seal choice matters too. A valve body may survive the heat while its elastomer seal fails early. That detail is often missed.

Control method changes operating behavior. Pneumatic actuators respond quickly and remain dependable in hazardous industrial areas. Electric actuators simplify installation where compressed air is unavailable. Self-operated thermostatic valves need little external equipment, but their adjustment range is limited. The U.S. Energy Information Administration’s 2018 CBECS data attributes about 32% of commercial-building energy use to space heating. Accurate sensing and properly tuned modulation deserve attention. Oversizing remains a common mistake. It can cause hunting, noise, and unstable outlet temperatures. No selection chart replaces checking actual load changes.

Sizing the Valve for Accurate and Stable Temperature Regulation

How to Choose the Right Temperature Control Valve?

Sizing the Valve for Accurate and Stable Temperature Regulation

Correct sizing begins with the process, not the pipe connection. Record mass flow, inlet pressure, outlet pressure, fluid density, viscosity, and heat load. The U.S. Department of Energy reports that process heating represents about 51% of energy use in U.S. manufacturing. Small control errors can therefore create noticeable energy losses.

For liquid service, calculate Cv from the required flow and pressure drop. For steam or gas, check choked flow, flashing, and compressibility using IEC 60534 methods. Size the valve around normal operation, often near 60–70% travel. A valve selected only for peak demand may operate near 15% open during normal production. Then, minor signal changes can cause unstable temperature swings. Check minimum, normal, and maximum loads. One design point is not enough. Real plants rarely behave exactly like the spreadsheet.

Tips: Confirm valve authority before approval. The control valve should receive enough pressure drop to regulate effectively. Place the temperature sensor after proper mixing, not directly beside the valve outlet. Review actuator response and fail position. A field commissioning check is valuable, because the calculation can still be imperfect. The IEA Energy Technology Perspectives 2023 report identifies industry as responsible for roughly 37% of global final energy use, making stable thermal control a practical efficiency measure.

Evaluating Installation, Maintenance, Safety, and Total Cost

Choosing a temperature control valve requires more than matching pipe size and pressure. Installation conditions often decide long-term performance. Check fluid temperature, flow range, actuator access, and sensor location before ordering. IEA’s Energy Efficiency 2023 report states that industry used about 37% of global final energy in 2022. Small control losses can therefore become expensive. A straight, supported pipe run reduces vibration and protects connections. Yet, field layouts are rarely perfect.

Maintenance access deserves equal attention. Leave space to remove the actuator without dismantling nearby piping. Fit isolation valves and a bypass only when operators can use them safely. The U.S. Department of Energy’s Operations & Maintenance Best Practices Guide estimates that stronger maintenance practices can save 5–20% energy. That figure is broad, not valve-specific. Still, it supports regular inspection of packing, seats, air filters, and calibration. Small leaks matter. Record hunting, delayed response, and unusual noise during each inspection.

Safety must shape the total-cost calculation. Select materials for the process fluid, confirm fail-safe action, and verify the maximum allowable pressure. Review lockout procedures with maintenance workers, not only engineers. A cheaper valve can demand frequent shutdowns, special tools, or earlier replacement. Compare purchase price, installation labor, energy loss, spare parts, testing, and disposal over the expected service life. ISO 55000’s asset-management principles support this lifecycle view. I have seen spreadsheets omit training and access work. That omission can make a “low-cost” choice look better than it really is.
